Commercial Industrial Automatic Coconut Juice Extractor Machine

The AGICO industrial coconut juice extractor is a continuous screw-press machine for separating liquid from prepared coconut material. Product enters through the hopper, moves through the pressing chamber, and is compressed mechanically. Liquid passes through the selected screen while pomace leaves through a separate outlet. This continuous arrangement supports organized feeding and collection in coconut milk, beverage, ingredient, and further-processing lines.

The machine is offered in three nominal capacities: 500, 1,500, and 2,500 kg/h. These values should be matched to prepared-material condition, feed consistency, screen aperture, pressing adjustment, and downstream receiving capacity. Coconut preparation remains important: hard shell must be removed, and the feed form must suit the inlet and pressing chamber. AGICO recommends confirming the intended coconut material, particle size, moisture condition, and required liquid clarity before model selection.

Coconut juicing machine factory front view

Key Features for Continuous Coconut Pressing

Three functional areas determine how the extractor fits a production line.

Continuous Screw Press

Automatic continuous pressing supports steady material movement rather than individual batch cycles. Stable feeding helps reduce surges that can affect separation and discharge.

Selectable Screen Aperture

A 0.6 mm screen is standard, while apertures from 0.3 to 2.0 mm are available. Selection should reflect desired liquid texture, solids retention, cleaning time, and the next process.

Separate Liquid and Pomace Outlets

Automatic separation allows liquid and pressed solids to be collected independently. Receiving tanks and pomace handling should be sized for the planned operating rate.

AGICO Technical Data

Parameter	AGICO-500	AGICO-1500	AGICO-2500
Model	AGICO-500	AGICO-1500	AGICO-2500
Nominal Processing Capacity	500 kg/h	1,500 kg/h	2,500 kg/h
Motor Power	1.5 kW	4–5.5 kW	11–15 kW
Machine Dimensions	910 × 385 × 810 mm	1,300 × 500 × 1,330 mm	1,480 × 740 × 1,780 mm
Standard Screen Aperture	0.6 mm	0.6 mm	0.6 mm
Available Screen Aperture	0.3–2.0 mm	0.3–2.0 mm	0.3–2.0 mm
Pressing Pressure	Mechanically adjustable
Construction Material	Food-grade SUS304 stainless steel
Standard Voltage	380 V, 50 Hz, 3 Phase
Alternative Voltage	Customizable
Operation Mode	Automatic continuous pressing
Product Separation	Automatic liquid and pomace separation

Choose capacity together with feed preparation, motor power, footprint, and utility supply. AGICO-500 suits lower-rate or pilot-scale planning where its compact dimensions match the work area. AGICO-1500 provides an intermediate continuous option. AGICO-2500 is intended for the largest listed nominal rate and requires coordinated upstream preparation, liquid storage, pomace removal, drainage, and maintenance access. Final output should be confirmed with representative material because coconut condition and operating settings influence practical performance.

Confirm prepared coconut form and the hourly feed target.

Select screen aperture according to liquid texture and solids target.

Match voltage, collection vessels, floor space, and cleaning access.

Production-Line Applications

Feed Preparation and Pressing

Prepared coconut material should reach the hopper at a controlled rate. Inspection before feeding helps remove shell fragments or unsuitable pieces. Consistent particle size can support steadier movement through the screw chamber. Mechanical pressure can be adjusted, but the appropriate setting depends on material condition and the buyer's balance between liquid recovery, pomace moisture, and stable discharge.

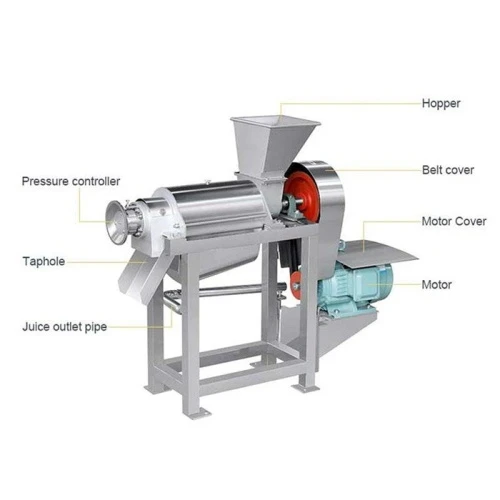

Coconut screw press juicer structure diagram

Liquid and Pomace Handling

The juice outlet should connect to a clean receiving tank, filter, transfer pump, or the next processing stage. Pomace needs a separate bin or conveyor that does not obstruct discharge. Before installation, confirm outlet heights, operator routes, drainage, guarding, and space for opening and cleaning the screen and pressing section.

Coconut Juice Extraction Workflow

Prepare

Remove hard shell and prepare coconut material in a form suitable for the hopper.

Feed

Supply material evenly so the screw press receives a controlled, continuous load.

Press and Filter

The screw compresses the material while liquid passes through the selected screen.

Collect Separately

Route extracted liquid and discharged pomace to their dedicated receiving systems.

After production, stop and isolate the machine according to the plant safety procedure. Remove retained coconut residue, clean accessible product-contact surfaces and the screen with approved methods, rinse where applicable, and inspect before reassembly. Screen condition, outlet cleanliness, and safe access should be included in the routine changeover checklist.

Installation, Cleaning, and Project Checks

Machine dimensions describe the equipment envelope, not the complete operating area. Allow clearance for loading, motor ventilation, screen removal, outlet collection, inspection, and service access. The AGICO-500 measures 910 × 385 × 810 mm, while the larger models require progressively more floor and vertical space. Verify doorway dimensions, lifting access, foundation condition, and the route used to move the machine into position.

Cleaning frequency depends on coconut condition, screen aperture, shift length, and the plant hygiene program. A finer screen may retain more solids and require closer monitoring. Operators should not allow residue to dry inside the screen or around the liquid and pomace outlets. Use only cleaning methods and chemicals approved for the final configuration and local food-processing requirements.

For quotation, provide the coconut preparation sequence, hourly target, desired product texture, working hours per shift, available voltage, and the planned destination of both liquid and pomace. These details help AGICO discuss a suitable model and its production-line interfaces without treating nominal capacity as a guaranteed result for every material condition.

Help FAQ

Frequently Asked Questions

Which model should I select?

Compare the required prepared-material rate with motor power, footprint, utilities, screen choice, and downstream capacity. Nominal capacity alone is not enough for final project selection.
Can the screen aperture be changed?

Yes. The standard aperture is 0.6 mm, and listed alternatives range from 0.3 to 2.0 mm. Confirm the required liquid texture and cleaning routine before selection.
Does the machine process whole coconuts?

The supplied data describes a screw-press extractor. Hard shell must be removed and the feed material prepared to suit the hopper and chamber. Confirm the intended preparation method with AGICO.
Can voltage be customized?

Yes. The standard supply is 380 V, 50 Hz, three phase, and alternative voltage is customizable. Provide the destination power standard before quotation.
